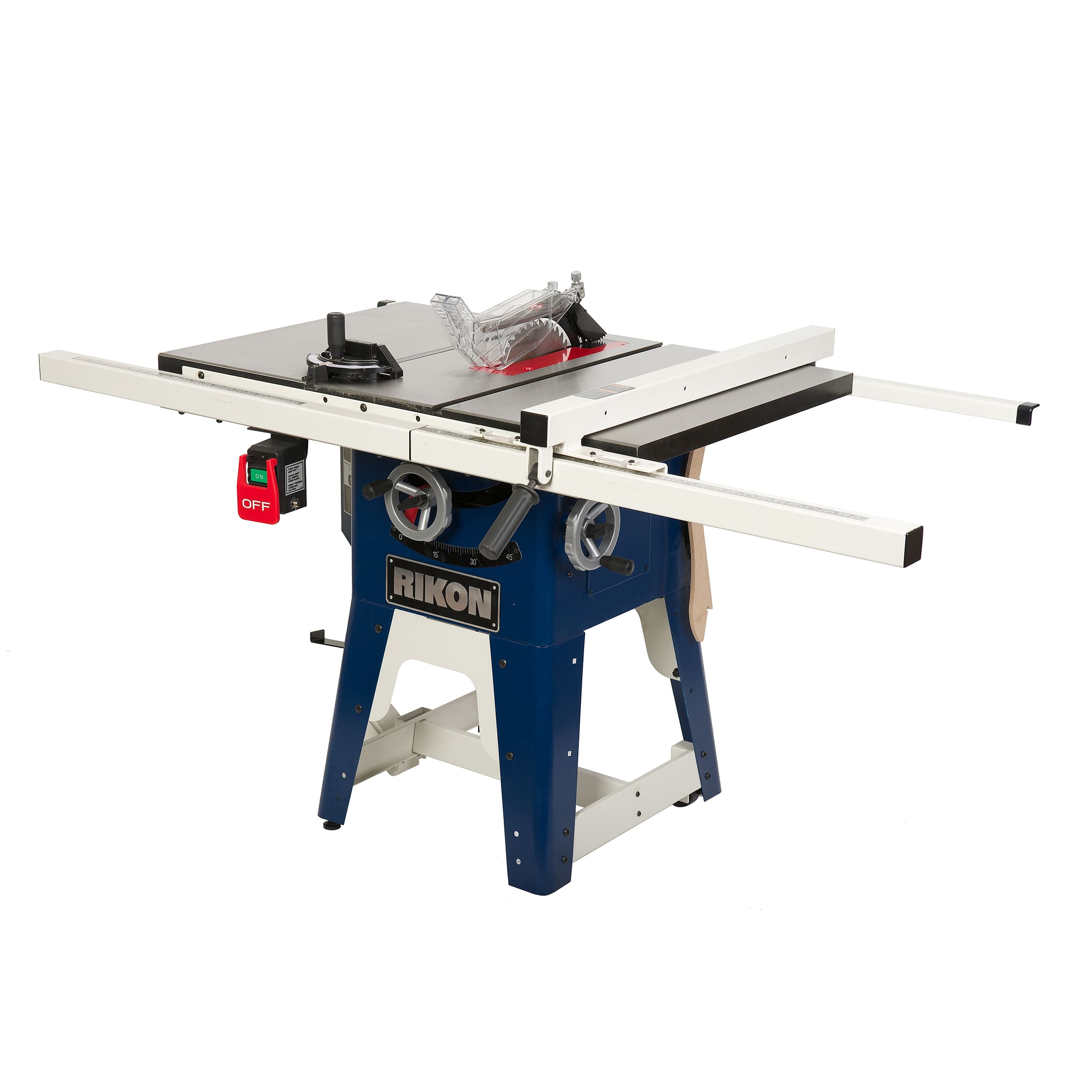

10" Left Tilt Contractor Saw
Model 10-201


RIKON's 10-201 10" Left Tilt Contractor's Saw has a built-in mobile base for maneuverability. Sturdy cast iron wings and 30" rip capacity standard.

More Details...
10" Table Saw with Cast Wing
Model 10-050
Product Discontinued

RIKON’s 10-050 has a powerful 3 HP TEFC motor with magnetic switch, features a solid cast trunnion and segmented triple drive belt system for reduced vibration. The dado capacity is 29/32”.

More Details...
10" Table Saw with Sliding Table
Model 10-110
Product Discontinued

RIKON’s 10-110 3HP Sliding Table Saw has enhancements that place it in a class of its own. It offers a unique built-in aluminum sliding table found only on very expensive machines.

More Details...


Model # 10-201 10-110 10-050

Cutting Capacity
Max. Depth of Cut 3-3/8" 3-1/8" 3-1/8"
Max. Rip to Right of Blade 30" 58" 48"
Max. Rip to Left of Blade 20" Sliding 10"
Max. Depth of Cut at 45° 2-1/4" 2-1/8" 2-1/8"
Table in Front of Blade 12-1/2" 13-7/8" 13-7/8"
Max. Width of Dado 13/16" 29/32" 29/32"
Blade
Diameter 10" 10" 10"
Arbor 5/8" 5/8" 5/8"
Speed 34500 rpm 4300 rpm 4300 RPM

Table
Main Table 27" X 40" 29-1/2" x 42-1/2" 29-1/2" x 42-1/2"
"T" Slot 2 3/8" x 3/4" 3/8" x 3/4" (2) 3/8" x 3/4"
Left of Blade "T" Slot Yes   Yes
Height from Floor 33-1/2" 33-1/2" 33-1/2"

Motor
Horsepower 1.5 HP 3 HP 3 HP
Volts 120/240V / 60Hz 230V / 60Hz 230V / 60 Hz
Amps 13/6.5 A 13 13
Phase Single Single Single
RPM 3450 3450 3450
Belts (1) Flat J-Belt 3 3
